MGN7H 台湾HIWIN滑块 HIWIN导轨 台湾上银滑块导轨

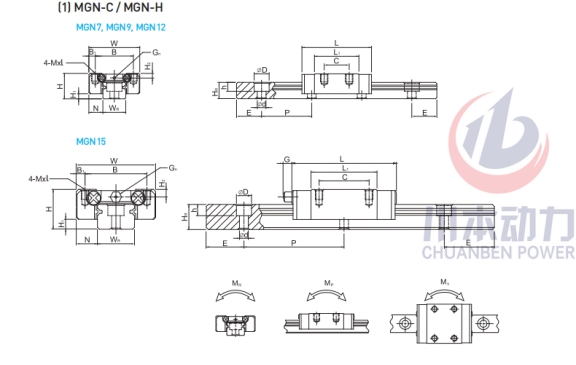

組件尺寸 | H | 8 | mm |
H1 | 1.5 | mm | |
N | 5 | mm | |
滑塊尺寸 | W | 17 | mm |
B | 12 | mm | |
B1 | 2.5 | mm | |
C | 13 | mm | |
L1 | 21.8 | mm | |
L | 30.8 | mm | |
G | - | mm | |
Gn | 1.2 | mm | |
MxL | M2*2.5 | mm | |
H2 | 1.5 | mm | |
導軌尺寸 | WR | 7 | mm |
HR | 4.8 | mm | |
D | 4.2 | mm | |
h | 2.3 | mm | |
d | 2.4 | mm | |
P | 15 | mm | |
E | 5 | mm | |
導軌的固定螺栓尺寸 | 導軌的固定螺栓尺寸 | M2*6 | mm |
基本動額定載荷 | C | 140 | kN |
基本靜額定載荷 | C0 | 200 | kN |
容許靜力矩 | MR | 0.78 | kN-m |
MP | 0.49 | kN-m | |
MY | 0.49 | kN-m | |
重量 | 滑塊 | 15 | g |
導軌 | 0.22 | kg/m |
